Understand the components and standards for temporary power—such as Camlock, NEMA, California Standard, and IEC 60309.
Temporary power supplies safe, scalable electricity to construction sites, live events, trade shows, film sets, and data centers during installation or maintenance. The goal is reliable distribution with secure, standards-compliant connectors that resist accidental disconnects and simplify setup.

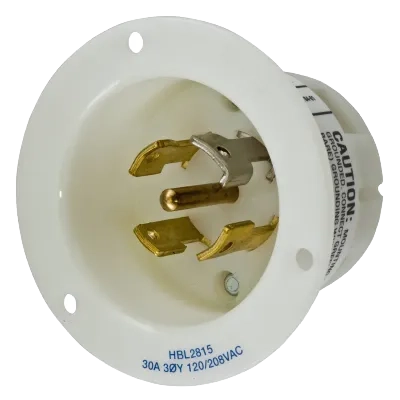

Common inputs and outputs for energizing portable power distribution, racks, and event lighting.

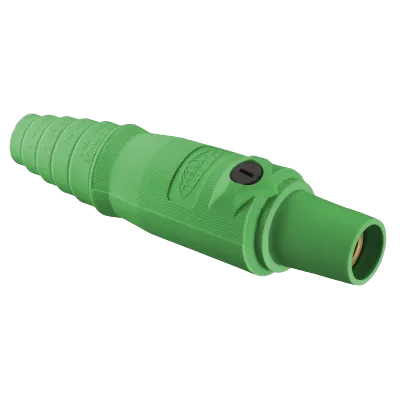

High-current, color-coded connectors used for large venue power, film production, and generator tie-ins. Scalable by running multiple single-pole lines.

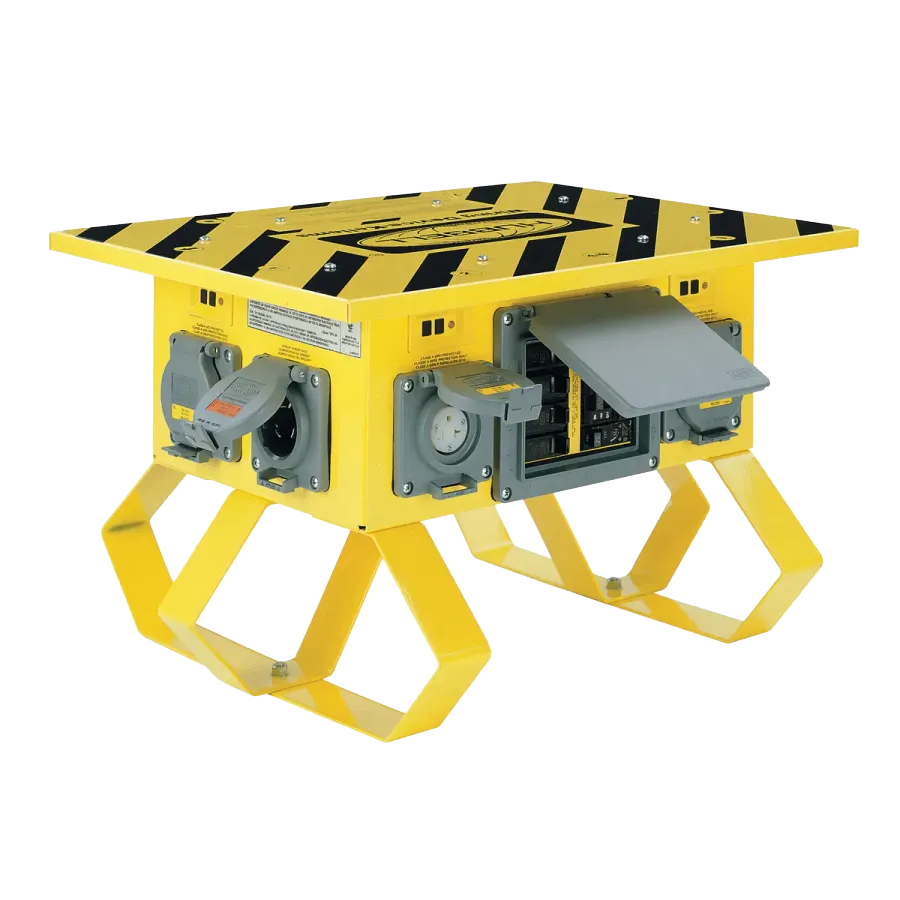

Temporary power distribution units that take a high-amperage input and provide multiple 120V and 240V receptacles. Common on construction sites, events, and film/TV production.

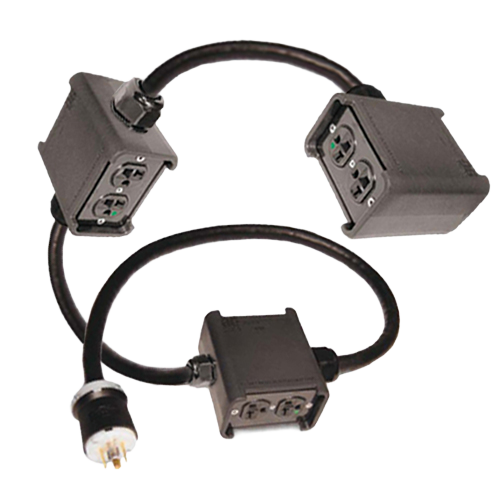

Daisy-chainable outlet boxes designed for distributing 120V power along a line. Ideal for event lighting, trade shows, and temporary work areas where multiple receptacles are needed in series.
| Standard | Amps | Voltage | Phase | Poles/Wires | Typical Use |
|---|---|---|---|---|---|
| Camlock | High current (e.g., 400A+) | Varies | Single-pole per conductor | N/A (per pole) | Main feeds, tie-ins |
| L5 | 15-20A | 125V | Single-phase | 2P3W | Branch circuits, gear |
| L6 | 20-30A | 250V | Single-phase | 2P3W | Motors, lighting, gear |
| L14 | Typically 30A | 125/250V | Single-phase split-phase | 3P4W | Generators, transfer |
| CA Standard | 50A | 125/250V | Single-phase | 3W (Hot/Hot/Ground) | Spider boxes, temporary power |
Values shown are common/typical for the listed standards; always verify nameplate ratings and local code requirements.
Standard camlock power cords - Black, Blue, Red, Green, White. 30 and 50 Feet.
Single-pole, high-current connectors for main feeds and tie-ins.
Temporary / portable power for temporary job site or event power.
Custom Portable Outlet Boxes and stringers for temporary power needs.
Custom design and manufacture available
Use Camlock for very high currents (e.g., large venue mains, generator tie-ins) where each conductor is run as a separate single-pole connection.
Spider boxes are portable power distribution units that step down a single 50A input (often CS6365) into multiple 20A GFCI receptacles and twist-lock outputs. They're rugged, breaker-protected, and widely used on job sites, festivals, and film sets.
CS 50A connectors provide a standard single-phase 125/250V input to spider boxes and temporary panels. They're twist-lock, heavy-duty, and often the “middle ground” between household plugs and Cam-Lok systems.
For durability and flexibility, SOOW or SJOOW rubber-jacketed cords are common. For wet/outdoor use, watertight connctions are preferred. Length and gauge depend on load and voltage drop considerations.
Yes. We build custom assemblies to spec with documentation for approval. Contact sales for assistance with lengths, jackets, and terminations.
