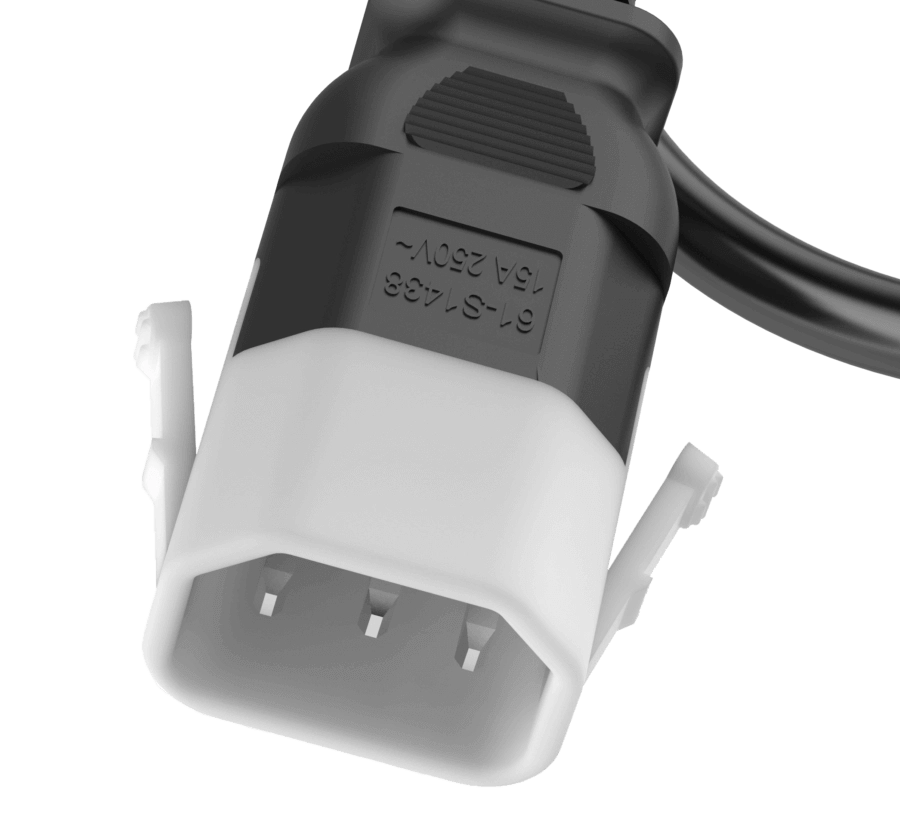

P-Lock Locking Plug
- C14 and C20
- No external clips or cable ties required
- Tool-less service; quick connect/disconnect with latch
What Are P-Lock, P-Lite, VS-Lock & S-Lock Cords?
They're IEC 60320 power cords with intergrated locking mechanisms designed to prevent unintentional disconnection when mated with a compatible inlet.

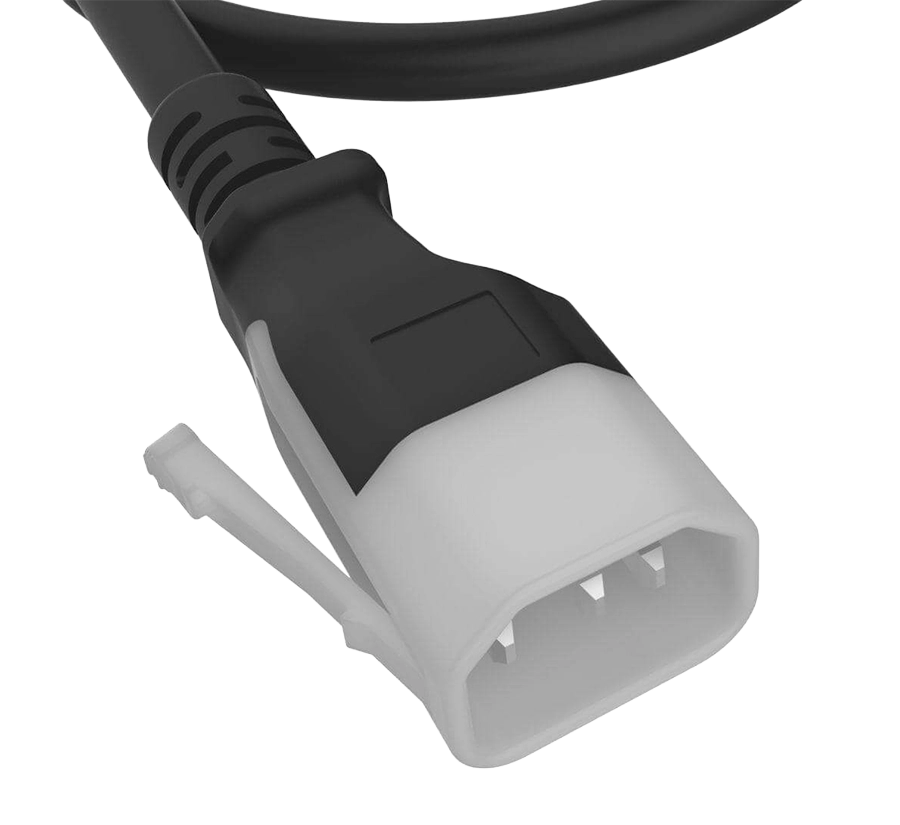

P-Lite Locking Plug
- C14
- Single latch
- Low-profile design saves space

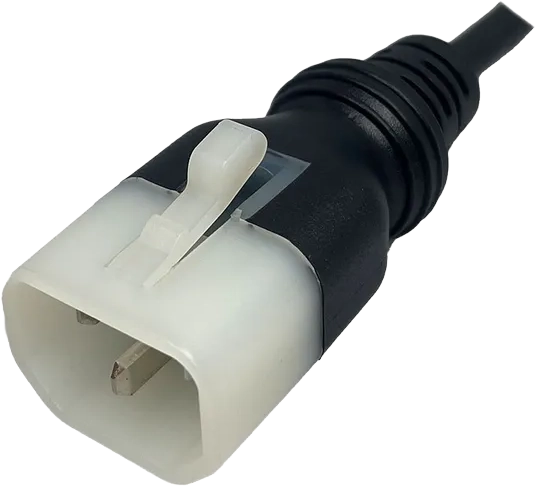

VS-Lock
V-Lock and W-Lock compatible
- C14/C20 input locking solution.
- Fits V-Lock and W-Lock PDUs
- Press to operate

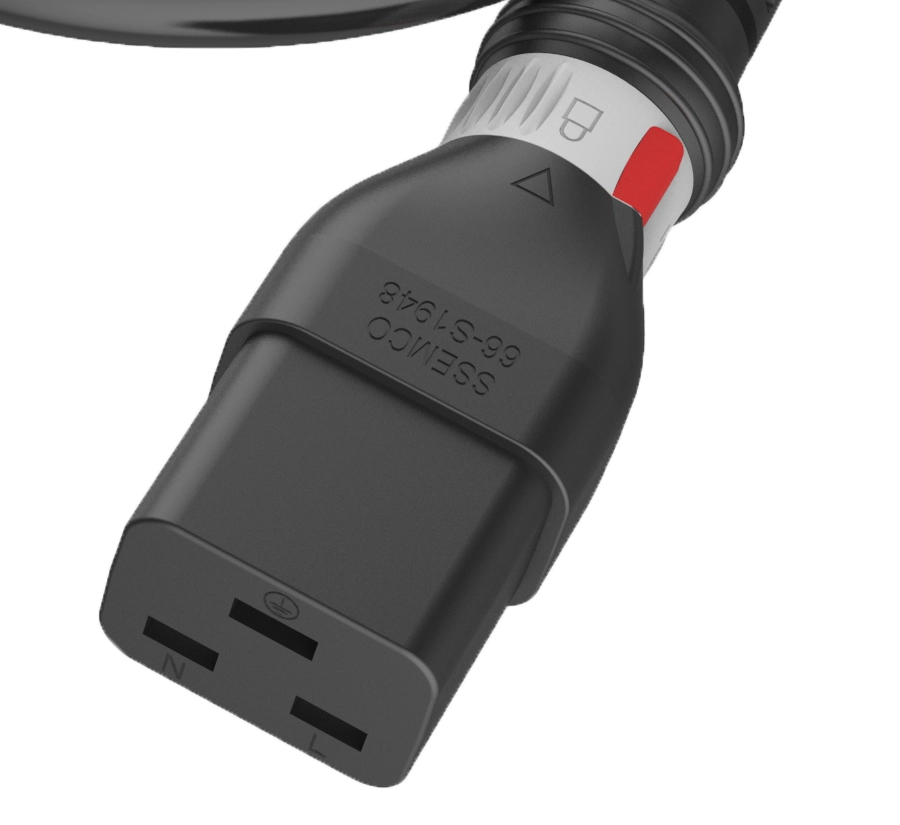

Equipment Side S-Lock
Second Generation
- C13/C15/C19/C21 Female locking solution.
- Fits any standard C14 inlet
- Twist to operate
How the Locking Mechanism Works
P-Lock (C14 and C20)
Uses a molded retention tab on the C14/C20 connector side that engages a matching notch on a compatible C13 or C19 outlet. Pinch to remove; otherwise, the cord resists disconnect from pull or vibration.
P-Lite (C14)
Uses a single molded retention tab to lock into any compatible C13 outlet. Similar to the P-Lock except with a smaller footprint and a low-profile design.
VS Lock (C14, C20)
Features a press-to-release locking mechanism integrated into the top of the plug housing. When engaged, the locking tab secures the connection to the mating inlet, preventing accidental disconnects.
S-Lock (C13, C15, C19, C21)
Feature a twist-to-lock mechanism around the base of the connector with locked and unlocked states. Locked state applies pressure on th plug blades for a secure connection.
At-a-Glance Comparison
| P-Lock | P-Lite | VS-Lock | S-Lock | |
|---|---|---|---|---|
| Plug/Connector Type(s) | C14 and C20 | C14 | C14 and C20 | C13/C15/C19/C21 |
| Locking Mechanism | Pinch to Lock/Unlock | Pinch to Lock/Unlock | Press Tab to Release | Twist to Lock/Unlock |
| Angle Options | Yes | No | Yes | Yes |
| Color Options | Red, Blue, Black, additional upon request | Red, Blue, Black, additional upon request | Red, Blue, Black, additional upon request | Red, Blue, Black, additional upon request |
| System Compatibility | P-Lock systems | P-Lock systems | V-Lock and W-Lock systems | Universal |
Selection Tips
Match the Outlet
- For P-Lock and P-Lite, confirm the device has a compatible outlet.
- S-Lock are universal and will mate with any standard inlet.
Size for the Current
- Choose a gauge based on the amperage draw
- 14/16/18 AWG options available
Plan Power Paths
- Color cords to separate A/B feeds
- Label both ends for rack serviceability
Demonstration Video
Browse P-Lock & S-Lock Products
P-Lock Cords
Locking C14 and C19 plugs for compatible IEC inlets.
Shop P-Lock C13
S-Lock C19 Cords
High-current locking cords for C20 inlets.
Shop S-Lock C19
Locking IEC 60320 - All
Full selection of locking C13/C19 assemblies.
Browse All
Custom Assemblies
Right-angle, length, color, and gauge built to spec.
Request a Quote
Best Practices
Installation
- De-energize when possible before mating
- Push until latch clicks and verify retention
- Route cords to avoid strain and sharp bends
Maintenance
- Inspect latches and jackets during change windows
- Replace cords showing heat or mechanical damage
- Keep spare lengths and colors for field swaps
Follow IEC 60320 and local electrical codes. Always match cord and device ratings (voltage, current, temperature).
Quality and Compliance
Quick Look
- UL/cUL listed
- High potential test voltage: 2000VAC (1min 50Hz)
- Operation temperature: -20°C ~ +70°C
- Flammability corresponding to: Plug/Connector: UL 94V-2 or better ；Cable: UL VW-1
FAQ
Do P-Lock work with any IEC inlet?
No. They require matching P-Lock with the retention feature. They share the IEC 60320 footprint but add a mechanical latch that standard inlets lack.
Which PDUs are compatible with P-Lock and P-Lite power cords?
P-Lock and P-Lite power cords are compatible with many ServerTech, Raritan, GELU, and Emerson Vertiv PDUs.
What's the difference between P-Lock and S-Lock?
P-Lock are on the male input side and have a pinch-to-operate mechanism. S-Lock are on the female output side and have a twist-to-lock mechanism.
Are there power cords with both ends locking?
Yes, P-Lock to S-Lock are called "Dual-Lock" and offer an end-to-end locking solution.
SSEMCO, P-Lock, and S-Lock are marks of their respective owners.
